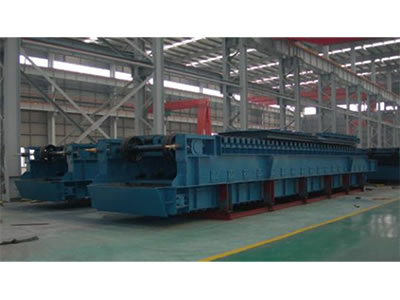

Apron Feeder

Apron Feeder
  • Apron Feeder
  • Apron Feeder
  • Apron Feeder

    • Apron Feeder

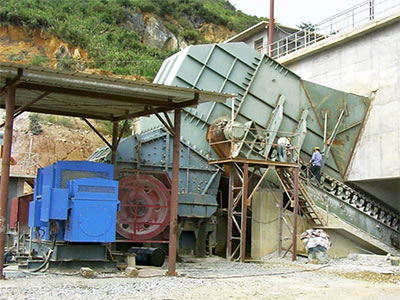

    Apron feeders are used to transport a variety of large or loose materials from the material warehouse to the crusher, conveyor or other equipment, and do so in a horizontal or inclined direction. The apron feeders are widely used in building materials, metallurgy, coal, chemical and other industries for raw material handling or continuous production processes in order to carryout production connection, stream flow regulation, material pre-mixing and other work. Here at SINOMALY, we have decades of experience in the production of apron feeders, and are able to supply equipment with a single processing capacity of 3,000 tons/hour.

    Request a Quote
    Technical Parameters
    Model Slot width (mm) Dip angle(°) Transport speed(m/s) Material granularity (mm) Delivery capacity (t/h)
    WB800×M 800 0-25 0.014-0.14 ≤350 20-80
    WB1000×M 1000 0-25 0.014-0.14 ≤600 40-120
    WB1250×M 1250 0-25 0.014-0.14 ≤700 40-200
    WB1400×M 1400 0-25 0.014-0.14 ≤700 40-250
    WB1500×M 1500 0-25 0.014-0.14 ≤800 40-300
    WB1600×M 1600 0-23 0.014-0.14 ≤800 40-320
    WB1800×M 1800 0-23 0.014-0.14 ≤900 40-600
    WB2000×M 2000 0-23 0.014-0.14 ≤1000 40-800
    WB2200×M 2200 0-23 0.014-0.14 ≤1100 40-1000
    WB2300×M 2300 0-23 0.014-0.14 ≤1200 40-1800
    WB2400×M 2400 0-23 0.014-0.14 ≤1200 40-1800
    WB2500×M 2500 0-23 0.014-0.14 ≤1500 40-2000
    WB3000×M 3000 0-23 0.014-0.14 ≤1800 500-3000

    Note: The main specifications of the above plate feeders can also be customized according to client requirements.

    Main structural components

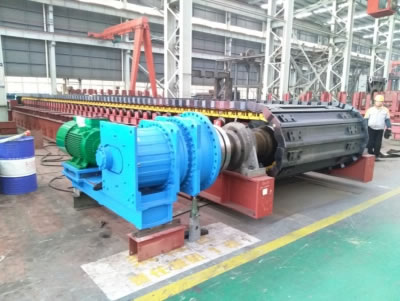

    Drive

    Drive
    The drive is the motive and transmission part of the apron feeder. The electric motor uses frequency conversion speed regulation. By adjusting the working speed, it can be paired with other equipment, such as a crusher, in order to take full advantage of the crusher or conveyor’s efficiency, thus improving the overall production efficiency.

    Tensioning device

    Tensioning device
    The tensioning device is made of alloy steel, which is used for elastic adjustment of the conveyor belt. In designing the device, we took into full consideration the differences between different topography and materials, and set parameters to adapt to the transmission of every angle.

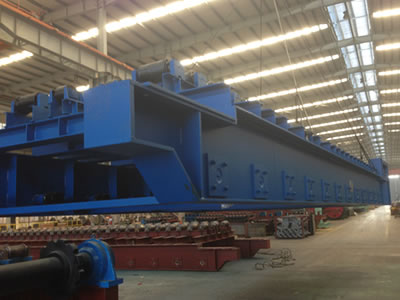

    Rack

    Rack
    The rack is an integral frame, welded by channel steel, double T-steel and a steel plate. The materials used, such as the channel steel and I beam are thicker than those most often used on the market. The frame structure is also compact, so that the equipment takes up very little space. Backed by decades of experience, our welding rack is strong and tight, and will not loosen easily under long-term vibration.

    So far, we have produced nearly 100 sets of apron feeders. Shown below are some of our customers:

    Equipment purchased Applied engineering Equipment purchased Applied engineering
    B800×3000 Kazakhstan B1500×7650 Kansai Cement Co. , Ltd, Vietnam
    B1000×3000 Saraburi, Thailand B1500×9000 Saudi Arabia SPCC
    B1000×3000 GEDEM B1500×11000 Saudi Arabia SPCC
    B1000×3000 Thanh Som Cement Co. , Ltd, Vietnam B1500×18000 Vietnam Caesar Project
    B1000×3600 Saudi SCC B1600×5500 Saraburi Project, Thailand
    B1000×5000 Fu sin cement Co., Ltd. , Vietnam B1600×9000 Dalian Jinzhou Jinshan Cement Plant
    B1000×8320 Kenya 55TPA B1600×9000 GEDEM
    B1000×9450 Kazakhstan B1800×8000 Sulaymaniya Cement Co., Ltd, Iraq
    B1000×11970 Kazakhstan B1800×9018 Thanh Som Cement Co. , Ltd, Vietnam
    B1000×18000 Kazakhstan B1800×10000 THAI PRIDE CEMENT CO.
    B1000×18000 Kazakhstan B2000×3500 Dong Banh Cement , Vietnam
    B1200×6385 Thanh Som Cement Co. , Ltd, Vietnam B2000×8500 Saudi Arabia RCP
    B1200×5000 Thanh Som Cement Co. , Ltd, Vietnam B2000×10000 Taiwan (Guigang) Cement Co., Ltd.
    B1200×3500 Dong Banh Cement , Vietnam B2000×15000 Sinoma (Handan) Construction Co., Ltd.
    B1200×6000 Dong Banh Cement , Vietnam B2200×10000 Saudi Arabia SPCC Project
    B1250×3000 GEDEM B2300×7000 Pakistan project
    B1250×4500 Kazakhstan project B2300×10000 Liyang Jinfeng Cement Co., Ltd.
    B1250×6080 Fu sin cement Co., Ltd. , Vietnam B2300×10000 Anhui Zhongguangyuan Cement Co., Ltd.
    B1250×8000 Lucky Cement Co. Ltd., Pakistan B2300×10000 Jiangsu Hantian Cement Co., Ltd.
    B1250×12000 CNBM Hangzhou Design & Research Institute B2300×10000 Hebei Yanzhao Cement Co., Ltd.
    B1400×3500 Sulaymaniya Cement Co., Ltd, Iraq B2400×12000 Taiwan (Yingde) Cement Co., Ltd.
    B1400×3600 Andriz Conch Cement B2400×12000 Taiwan (Guigang) Cement Co., Ltd.
    B1400×3600 Saudi Arabia SPCC B1400×12042 Kazakhstan project
