Slag Crushing and Grinding Plant

Slag Crushing and Grinding Plant

Introduction

Capacity: 300~1,000 thousand tons/year

Feed Material Size: 2 mm~10 mm

Feed Material: Powdered material like feldspar, calcite, steatite, barite, fluorite, tombarthite, marble, ceramics, bauxite, manganese ore and phosphorus rock.

SINOMALY specializes in offering slag powder production line design, including the design, production and delivery of the vertical mill, installation of equipment sets, and general contracting of the production line construction.

Process: Slag Drying Machine → Extrusion Press→ Agglomerator →Powder Separator (Fine Powder) →Superfine Grinding Mill → Finished Product

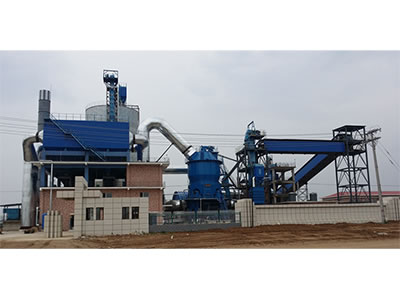

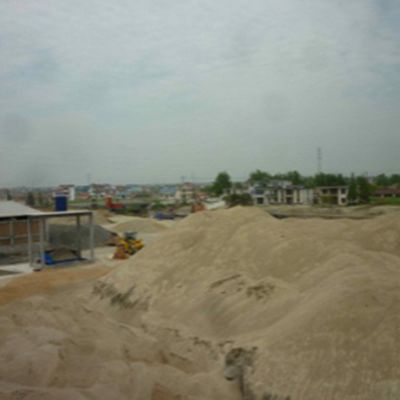

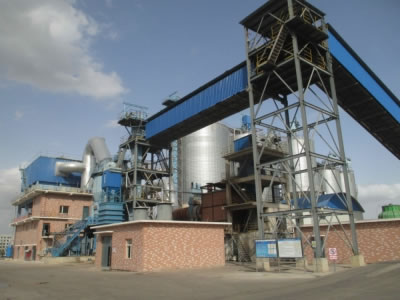

  • Slag stack Slag stack
  • Feeding equipment Feeding equipment

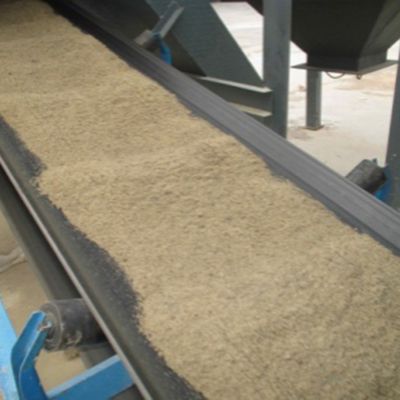

  • Conveyer belt Conveyer belt
  • Vibrating screen Vibrating screen

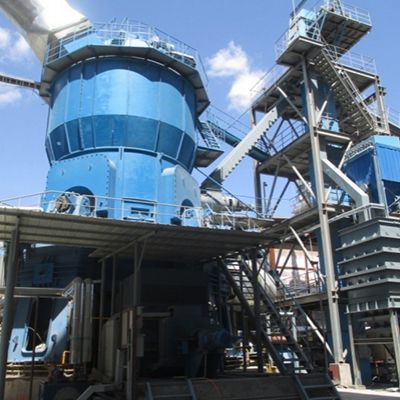

  • Vertical mill Vertical mill
  • Products collection Products collection

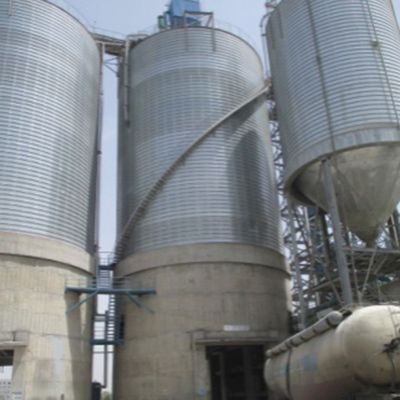

  • Warehousing management system Warehousing management system
  • External circulation system External circulation system

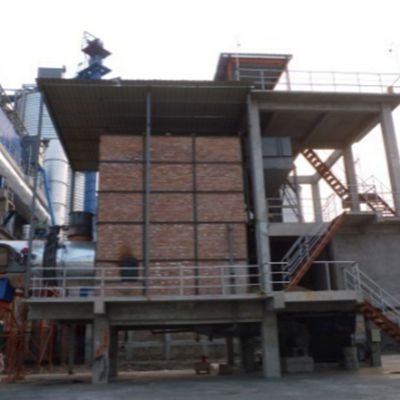

  • Hot-blast stove system Hot-blast stove system
Fine powder production line with vertical mill operation process:
  • Slag feeding equipment
  • Elevator
  • Dust collector
  • Vertical mill
  • Powder collector
  • Fan
  • Funnel
  • Conveyer belt
  • Hot-blast stove
  • Finished product storage
  • The stacked slag is taken and fed by the forklift, and conveyed using the the belt conveyor.
  • The slag is transported by the elevator into the vertical mill for grinding. The slag powder is then collected by the powder separator, and dried using a hot blast stove.
  • The dried slag powder is transported into the vertical mill for regrinding, after which the slag powder will be collected using a powder separator, then the qualified powder is moved to the finished product warehouse.
Our recommended optimal production line configurations are listed below.
150 thousand tons/year slag powder production line
Equipment Parameters
LRMS22.2 vertical mill for slag Capacity: ≥20t/h,
Specific surface area of product: ≥420m2/kg,
Power: 630kW
Hot-blast stove Heating capacity: 0.4×107 kcal/h
Dust collector Airflow: 80000 m³/h,
Filter area: 1594 m2
Filtration velocity: 0.80～0.85 m/min
Inlet dust concentration: ≤800g /Nm3
Outlet dust concentration: ≤30mg/Nm3
Fan Total pressure: 7200 Pa
Airflow: 80000 m3/h
Power: 220 kW
200 thousand tons/year slag powder production line
Equipment Parameters
LRMS25.2 vertical mill for slag Capacity: ≥28t/h,
 Specific surface area of product: ≥420m2/kg,
Power: 900kW
Hot-blast stove Heating capacity: 0.5×107 kcal/h
Dust collector Airflow: 112000 m³/h,
 Filter area: 2196 m2
Filtration velocity: 0.80～0.850.80m/min
Inlet dust concentration: ≤800g /Nm3
Outlet dust concentration: ≤30mg/Nm3
Fan Total pressure: 7200 Pa;
Airflow: 112000 m3/h
Power: 315kW
300 thousand tons/year slag powder production line
Equipment Parameters
LRMS36.3 vertical mill for slag Capacity: ≥45 t/h,
 Specific surface area of product: ≥420m2/kg,
Power: 1600 kW
Hot-blast stove Heating capacity: 0.9×107 kcal/h
Dust collector Airflow: 180000 m³/h,
 Filter area: 3659 m2
Filtration velocity: 0.80～0.85 m/min
Inlet dust concentration: ≤800g /Nm3
Outlet dust concentration: ≤30mg/Nm3
Fan Total pressure: 7200 Pa;
Airflow: 180000 m3/h
Power: 500 kW
450 thousand tons/year slag powder production line
Equipment Parameters
vertical mill for slag Capacity: ≥65 t/h,
Specific surface area of product: ≥420m2/kg,
Power: 2000 kW
Hot-blast stove Heating capacity: 1.3×107 kcal/h
Dust collector Airflow: 260000 m³/h,
Filter area: 5352 m2
Filtration velocity: 0.80～0.85 m/min
Inlet dust concentration: ≤800g /Nm3
Outlet dust concentration: ≤30mg/Nm3
Fan Total pressure: 7200 Pa;
Airflow: 260000 m3/h
Power: 710 kW
500 thousand tons/year slag powder production line
Equipment Parameters
LRMS38.3 vertical mill for slag Capacity: ≥75 t/h,
 Specific surface area of product: ≥420m2/kg,
Power: 2500 kW
Hot-blast stove Heating capacity: 1.5×107 kcal/h
Dust collector Airflow: 300000 m³/h,
Filter area: 6116 m2
Filtration velocity: 0.80～0.85 m/min
Inlet dust concentration: ≤800g /Nm3
Outlet dust concentration: ≤30mg/Nm3
Fan Total pressure: 7200 Pa;
Airflow: 300000 m3/h
Power: 800 kW
600 thousand tons/year slag powder production line
Equipment Parameters
LRMS43.3 vertical mill for slag Capacity: ≥90 t/h,
Specific surface area of product: ≥420m2/kg,
Power: 3150 kW
Hot-blast stove Heating capacity: 1.8×107 kcal/h
Dust collector Airflow: 360000 m³/h,
Filter area: 7319 m2
Filtration velocity: 0.80～0.85 m/min
Inlet dust concentration: ≤800g /Nm3
Outlet dust concentration: ≤30mg/Nm3
Fan Total pressure: 7200 Pa;
Airflow: 360000 m3/h
Power: 1000 kW
800 thousand tons/year slag powder production line
Equipment Parameters
LRMS46.3 vertical mill for slag Capacity: ≥115 t/h,
Specific surface area of product: ≥420m2/kg,
Power: 3550 kW
Hot-blast stove Heating capacity: 2.3×107 kcal/h
Dust collector Airflow: 460000 m³/h,
Filter area: 8782 m2
Filtration velocity: 0.80～0.85 m/min
Inlet dust concentration: ≤800g /Nm3
Outlet dust concentration: ≤30mg/Nm3
Fan Total pressure: 7200 Pa;
Airflow: 460000 m3/h
Power: 1250 kW
900 thousand tons/year slag powder production line
Equipment Parameters
LRMS50.3 vertical mill for slag Capacity: ≥130 t/h,
Specific surface area of product: ≥420m2/kg,
Power: 4000 kW
Hot-blast stove Heating capacity: 2.6×107 kcal/h
Dust collector Airflow: 520000 m³/h,
Filter area: 10873 m2
Filtration velocity: 0.80～0.85 m/min
Inlet dust concentration: ≤800g /Nm3
Outlet dust concentration: ≤30mg/Nm3
Fan Total pressure: 7200 Pa;
Airflow: 520000 m3/h
Power: 1400 kW
1 million tons/year slag powder production line
Equipment Parameters
LRMS53.3 vertical mill for slag Capacity: ≥140 t/h,
Specific surface area of product: ≥420m2/kg,
Power: 4500 kW
Hot-blast stove Heating capacity: 2.8×107 kcal/h
Dust collector Airflow: 560000 m³/h,
Filter area: 10873 m2
Filtration velocity: 0.80～0.85 m/min
Inlet dust concentration: ≤800g /Nm3
Outlet dust concentration: ≤30mg/Nm3
Fan Total pressure: 7200 Pa;
Airflow: 560000 m3/h
Power: 1600 kW
1.2 million tons/year slag powder production line
Equipment Parameters
LRMS56.3 vertical mill for slag Capacity: ≥170 t/h,
Specific surface area of product: ≥420m2/kg,
Power: 5400 kW
Hot-blast stove Heating capacity: 3.4×107 kcal/h
Dust collector Airflow: 680000 m³/h,
Filter area: 13592 m2
Filtration velocity: 0.80～0.85 m/min
Inlet dust concentration: ≤800g /Nm3
Outlet dust concentration: ≤30mg/Nm3
Fan Total pressure: 7200 Pa;
Airflow: 680000 m3/h
Power: 1800 kW
1.5 million tons/year slag powder production line
Equipment Parameters
LRMS63.3 vertical mill for slag Capacity: ≥210 t/h,
Specific surface area of product: ≥420m2/kg,
Power: 6500 kW
Hot-blast stove Heating capacity: 3.4×107 kcal/h
Dust collector Airflow: 840000 m³/h,
Filter area: 16310 m2
Filtration velocity: 0.80～0.85 m/min
Inlet dust concentration: ≤800g /Nm3
Outlet dust concentration: ≤30mg/Nm3
Fan Total pressure: 7200 Pa;
Airflow: 840000 m3/h
Power: 2240 kW
1.8 million tons/year slag powder production line
Equipment Parameters
LRMS66.4 vertical mill for slag Capacity: ≥250 t/h,
Specific surface area of product: ≥420m2/kg,
Power: 8000 kW
Hot-blast stove Heating capacity: 5.0×107 kcal/h
Dust collector Airflow: 1000000 m³/h,
Filter area: 19880 m2
Filtration velocity: 0.80～0.85 m/min
Inlet dust concentration: ≤800g /Nm3
Outlet dust concentration: ≤30mg/Nm3
Fan Total pressure: 7200 Pa;
Airflow: 1000000 m3/h
Power: 2800 kW
2 million tons/year slag powder production line
Equipment Parameters
LRMS70.4 vertical mill for slag Capacity: ≥280 t/h,
Specific surface area of product: ≥420 m2/kg,
Power: 8500 kW
Hot-blast stove Heating capacity: 5.6×107 kcal/h
Dust collector Airflow: 1120000 m³/h,
Filter area: 21400 m2
Filtration velocity: 0.80～0.85 m/min
Inlet dust concentration: ≤800 g/Nm3
Outlet dust concentration: ≤30m g/Nm3
Fan Total pressure: 7200 Pa;
Airflow: 1120000 m3/h
Power: 3000 kW
