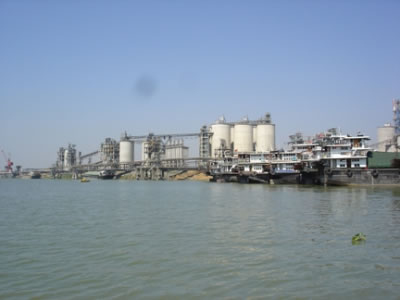

Introduction to Cement Crushing and Grinding Plant
We offer a series of equipment to form an automated production line for cement plants, as well as offer a series of project services, including process design, civil construction, complete sets of equipment, installation and commissioning, and technical assistance.
Using the clinker production line, limestone raw material can be crushed, homogenized, dried, preheated and decomposed, sintered, cooled, ground, processed into cement finished product, then transported and packaged automatically. This line is also environmentally friendly and ensures a dust free process.
Depending on the output, we can provide our customers with clinker line production equipment in a range of capacities, including 1000t/d, 1500t/d, 2500t/d, 3000t/d, 4500t/d, 5000t/d, 6000t/d, 4500t/d, and 10,000t/d.
Configurations and process characteristics of clinker production line with output of 2500 t/d.
1. Limestone Crushing
Material Feed Size:
PE-900X1200 Jaw Crusher
Material Feed Size:
Model: PYS-1215 Cone Crusher
Material Feed Size: 150mm
Final Fineness: 30mm
2. Pre-homogenization Stockpile

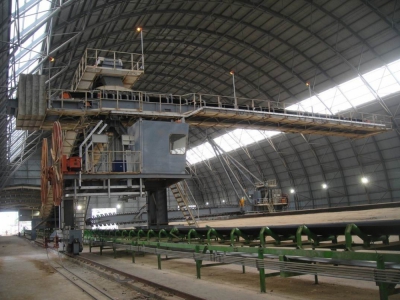

Limestone Pre-homogenization Stockpile
Boom Stacker Capacity: 1400t/h
Bridge-type Scraper Reclaimer Capacity:500t/h
Siltstone Pre-homogenization Stockpile
Traveling Stacker Capacity: 200t/h
Chain Reclaimer Capacity: 110--130t/h
Raw Coal Pre-homogenization Stockpile
Movable Cart Stacker Capacity: 200t/h
Bridge-type Scraper Reclaimer Capacity: 100t/h
3. Raw Material Grinding
Equipment: Vertical Mill
Material Feed Moisture Content: 6%
Final Moisture Content: 0.5%
Material Feed Size: 100mm
Final Fitness: R80μm < 12%
4. Raw Material Homogenizing Silo
The raw material homogenizing silo is equipped with an 18m×55m continuous multiple flows CP homogenization silo with an effective storage capacity of 9000t, storage life of 2.25d and power consumption of 0.3kW/h per ton of raw material. In order to achieve homogenization and stabilize the flow of the discharged materials, key valves on the base plate inflation and discharge system are produced by the German company BMH. In order to prevent water penetration and water leakage from affecting normal operation, the silo top is made of steel.
5. Burning System
Airflow Capacity: 550000 m
Electric field Sectional Area: 196m2
Inlet Dust Concentration: ≤30 g/m3
Outlet Dust Concentration: ≤50mg/Nm 3

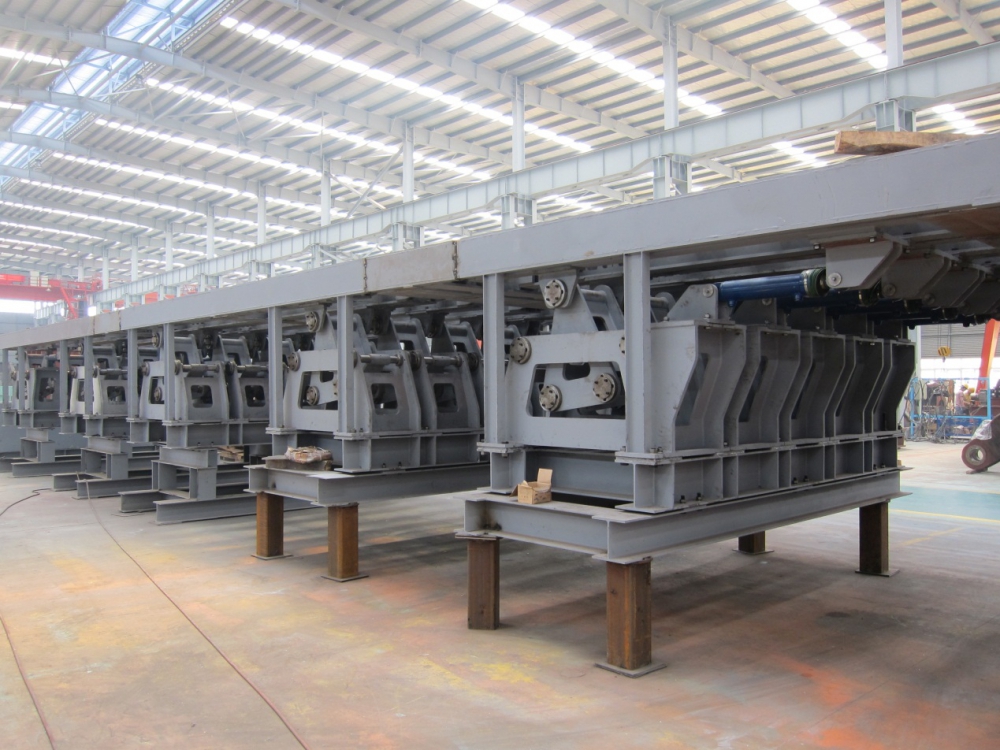

6. Clinker Cooling System
Equipment: LBT36352 Grate Cooler
Grate Area: 119.6 m2
Feed material Temperature: 1400℃
Discharge Temperature: 65℃
7. Waste Gas Treatment System
Equipment 1: high temperature fan
Rated Power: 1250 kW
Gas Treatment Capacity: 420000～480000 m 3/h
Equipment 2: kiln tail dust catcher (Bag Filter)
Airflow Capacity: 450000m 3/h
Emission Concentration: ≤ 10mg/m3
8. Pulverized Coal Preparation Measurement System
Equipped with an original German Pfister scale for accurate measurement, stable operation and flexible adjustments.
9. Auto-control System
This equipment uses a distributed DCS control system developed by Honeywell, an American company, thus ensuring a higher level of automation.
